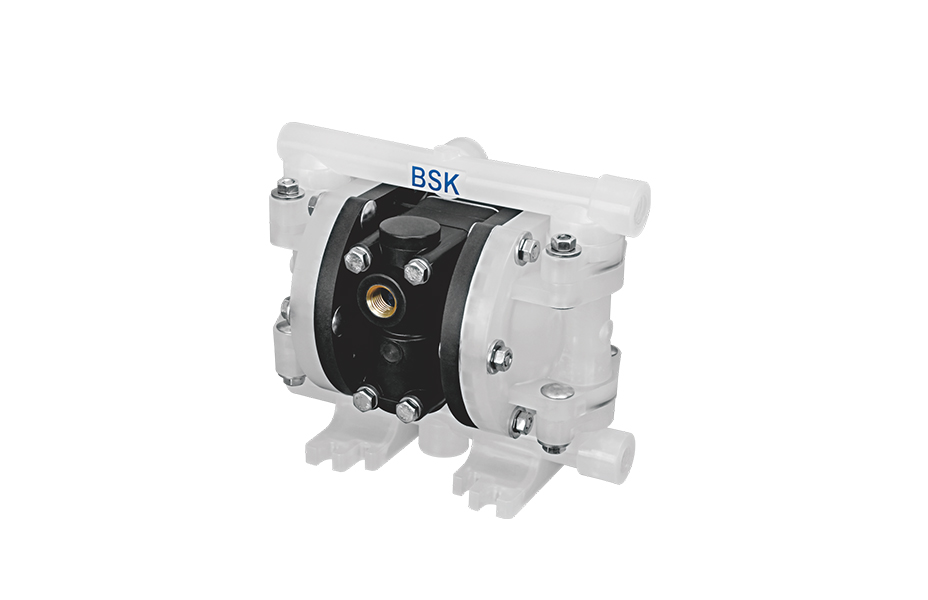

BP06XX-XXXX-X

BP 06XX- X X X X -X
Center body Housing material Seat material Ball material Diaphragm material O-ring material Port
Polypropylene PP - Polypropylene P - polypropylene 9 - Santoprene®
T - PTFE
S - Stainless steel
P - UPE
9 - Santoprene®
T - PTFE
1-NBR
4-PTFE(COVE)
B-NPT


Pump Data

Working air pressure 0.09-0.60 Mpa
Maximum outlet pressure 0.60 Mpa
Maximum flow rate 26.1 lpm
Maximum particle size 1 mm
Maximum dry suction 4.2M
Noise level @70psi 68 dB
Weight 1.3 kg

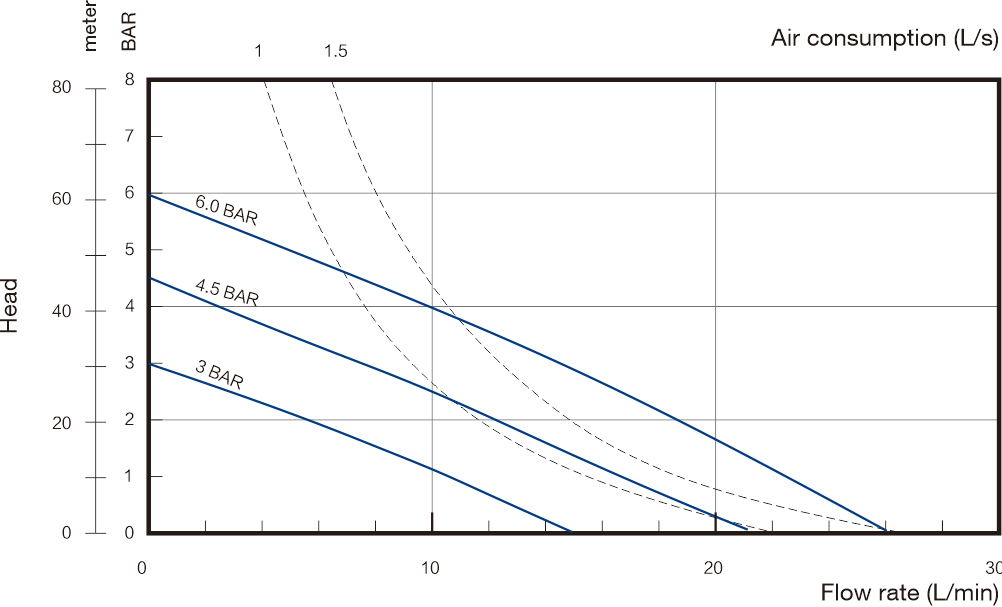

PERFORMANCE CURVE

View Big Pictrue
