BA80XX-XXXX-X

BA 80XX- X X X X -X
Center body Housing material Seat material Ball material Diaphragm material O-ring material Port
Aluminum alloy SS - Stainless steel
CS - Carbon steel
CI - Cast Iron
S - Stainless steel
C - Carbon steel
0 - Aluminum
9 - Santoprene®
D - POM
9 - Santoprene®
H - Hytrel®
T - PTFE
P - UPE
9 - Santoprene®
H - Hytrel®
T - PTFE/Santoprene®
0 - Non
1 - NBR
3 - PTFE(FULL)
A - BSP (thread)
C - Flange


Pump Data

Working air pressure 0.10-0.83 Mpa
Maximum outlet pressure 0.83 Mpa
Maximum flow rate 903 lpm
Maximum particle size 9 mm
Maximum dry suction 5.3 m
Noise level @70psi 75 dB
Weight
Plastic 95 kg
Stainless steel 91 kg
Carbon steel 42 kg

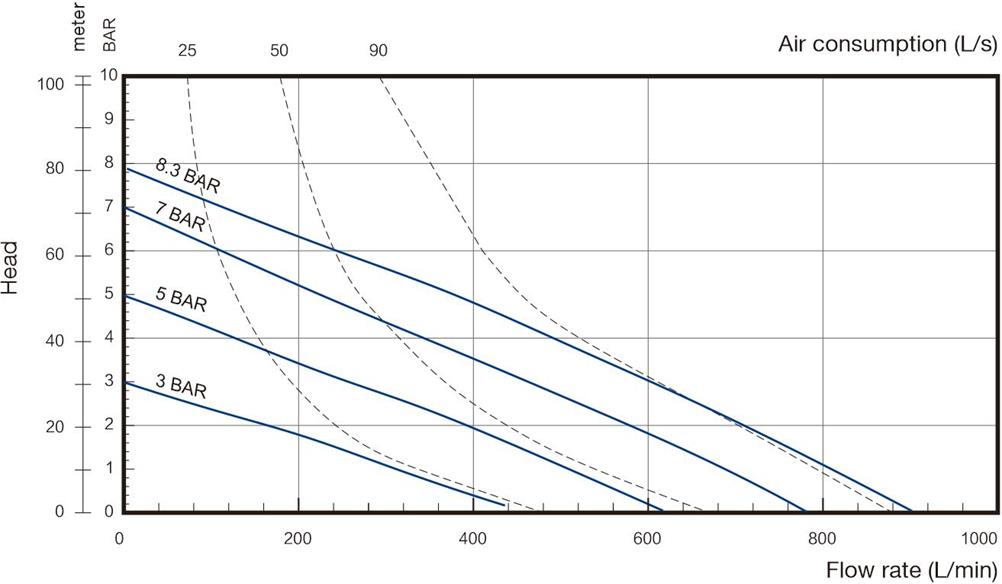

PERFORMANCE CURVE
