BA50XX-XXXX-X

BA 50XX- X X X X -X
Center body Housing material Seat material Ball material Diaphragm material O-ring material Port
Aluminum alloy PP - Polypropylene
SS - Stainless steel
CS - Carbon steel
AL - Aluminum
P - Polypropylene
S - Stainless steel
C - Carbon steel
0 - Aluminum
9 - Santoprene®
D - POM
9 - Santoprene®
H - Hytrel®
T - PTFE
8 - Santoprene® w/steel core
P - UPE
9 - Santoprene®
H - Hytrel®
T - PTFE/Santoprene®
0 - Non
1 - NBR
3 - PTFE(FULL)
4 - PTFE(COVER)
A - BSP (thread)
C - Flange


Pump Data

Working air pressure 0.10-0.83 Mpa
Maximum outlet pressure 0.83 Mpa
Maximum flow rate 667 lpm
Maximum particle size 7 mm
Maximum dry suction 6.2 m
Noise level @70psi 75 dB
Weight
Plastic 26 kg
Stainless steel 53 kg
Carbon steel 48.5 kg
Aluminum 24.5 kg

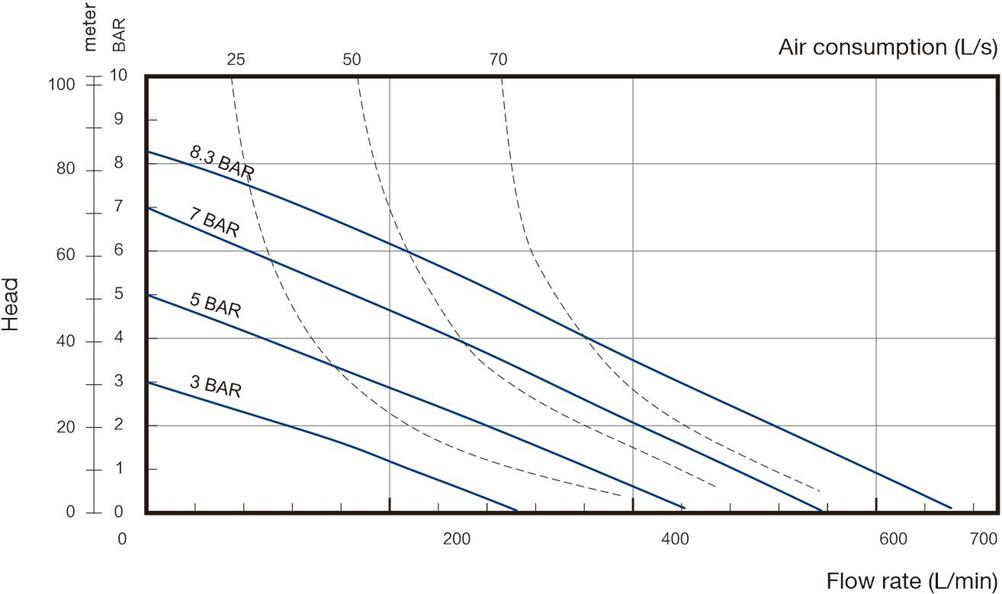

PERFORMANCE CURVE

View Big Pictrue

View Big Pictrue

View Big Pictrue

View Big Pictrue
