BA40XX-XXXX-X

BA 40XX- X X X X -X
Center body Housing material Seat material Ball material Diaphragm material O-ring material Port
Aluminum alloy PP - Polypropylene
SS - Stainless steel
CS - Carbon steel
AL - Aluminum
P - Polypropylene
S - Stainless steel
C - Carbon steel
0 - Aluminum
9 - Santoprene®
9 - Santoprene®
H - Hytrel®
T - PTFE
8 - Santoprene® w/steel core
P - UPE
9 - Santoprene®
H - Hytrel®
T - PTFE/Santoprene®
0 - Non
1 - NBR
3 - PTFE(FULL)
4 - PTFE(COVER)
A - BSP (thread)
C - Flange


Pump Data

Working air pressure 0.10-0.83 Mpa
Maximum outlet pressure 0.83 Mpa
Maximum flow rate 378.5 lpm
Maximum particle size 6 mm
Maximum dry suction 6.7 m
Noise level @70psi 75 dB
Weight
Plastic 19 kg
Stainless steel 30 kg
Carbon steel 30 kg
Aluminum 18 kg

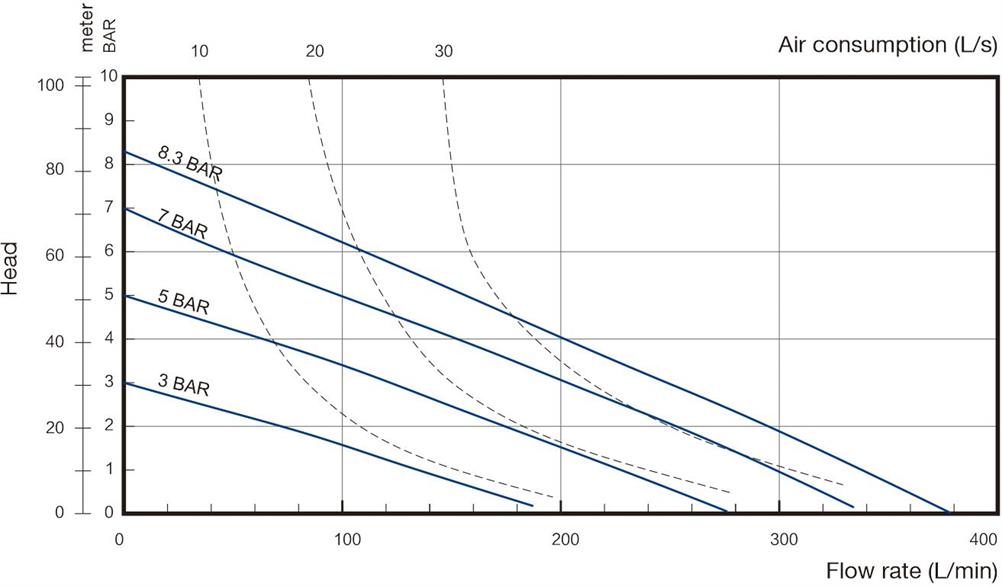

PERFORMANCE CURVE
