BA25XX-XXXX-X

BA 25XX- X X X X -X
Center body Housing material Seat material Ball material Diaphragm material O-ring material Port
Aluminum alloy PP - Polypropylene
SS - Stainless steel
CS - Carbon steel
AL - Aluminum
P - Polypropylene
S - Stainless steel
C - Carbon steel
0 - Aluminum
9 - Santoprene®
D - POM
9 - Santoprene®
H - Hytrel®
T - PTFE
S - Stainless steel
7 - Nylon
8 - Santoprene® w/steel core
P - UPE
9 - Santoprene®
B - NBR
H - Hytrel®
T - PTFE/Santoprene®
1 - NBR
3 - PTFE(FULL)
4 - PTFE(COVER)
5 - FKM
A-BSP (thread)
C-Flange


Pump Data

Working air pressure 0.10-0.83 Mpa
Maximum outlet pressure 0.83 Mpa
Maximum flow rate 192 lpm
Maximum particle size 3 mm
Maximum dry suction 6.7 m
Noise level @70psi 75 dB
Weight
Plastic 9.5 kg
Stainless steel 14.5 kg
Carbon steel 14.5 kg
Aluminum 9.5 kg

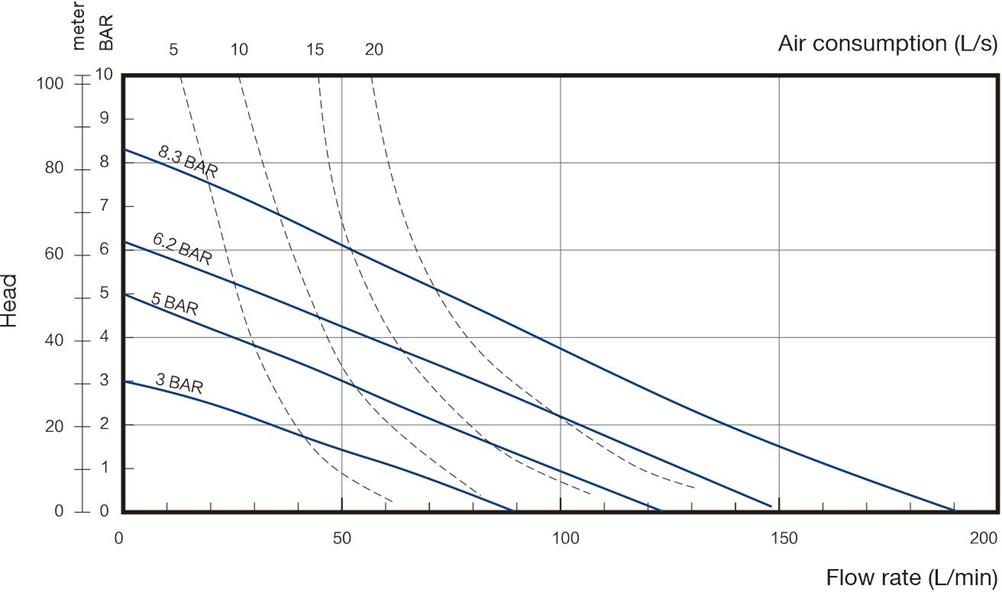

PERFORMANCE CURVE
